Features of ParkMax-DS

  • 2 Cars can be parked in the space of 1 Car, which saves your precious land.
  • Low ceiling design with advanced hydraulic system driven two stage cylinder for better lifting performance.
  • Galvanized corrugated platform guarantee long life and safety of driver as well as vehicle.
  • High level of operating and functional safety.
  • Low maintenance cost, operational cost and construction cost.
  • Suitable for indoor as well as outdoor installation.
  • Suitable for Commercial Complexes, Malls, Residential Buildings, Hotels etc.
  • Individual, or single multi-unit power unit configurations.


Specifications

Model System Width Platform Width System Height Car Height Lower Level Car Height Upper Level
DS-Standard 2400 2050 3450 1800 1500
DS-Comfort 2600 2250 3550 1900 1550
DS-Royal 2800 2450 3650 2000 1600
Note: Sizes can be varied as per client requirements and site conditions.
  • All sizes are in mm.

Technical Data

Feature Value
Maximum Load 2000 kg
Max Load Per Wheel 500 kg
No of Parking 2 Cars
Operation Type Dependent Type.
Travel Time 35-45 Seconds.
Installation Indoor / Outdoor.
Coating Powder coating(for indoor)/ Hot di Galvanized(for outdoor).
Power Source AC 415 V, 3-Phase, 50 Hz
Operating system Electrically operated hydraulic system with heavy duty chain for platform balancing.
Safety System Electrically operated ratchet system, Electrically operated emergency Stop button.

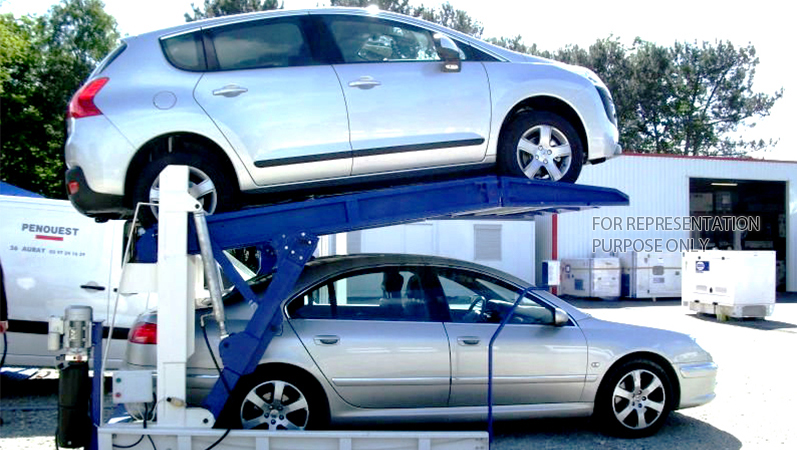

Tilt-Parker

  • Accommodates cars and small SUVs.
  • Perfect car parking solution when ceiling clearances are limited and vehicle heights are restricted.
  • For commercial or residential applications.
Tilt Parking

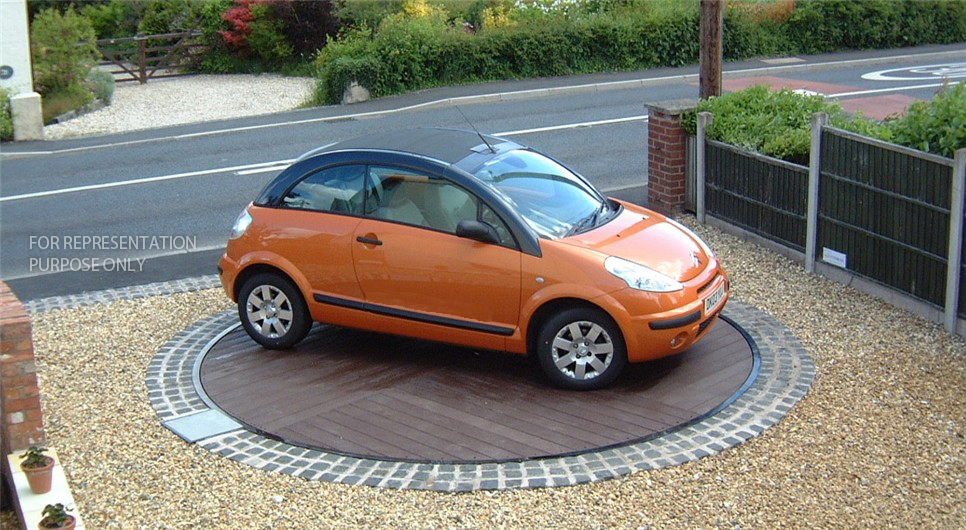

Turn-table

  • Increase parking access, maximizing available space in tight driveways.
  • Solve parking problems and hazards when parking in tight turning bays and on blind curves and crests.
Turn Table Parking

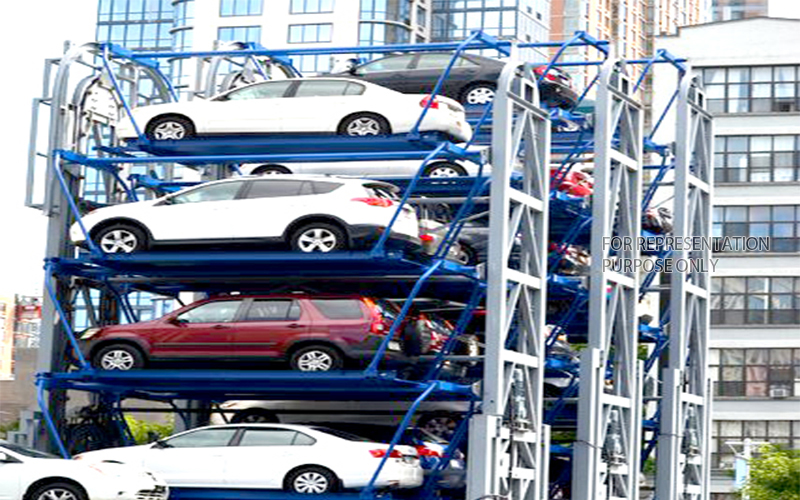

Rotary Parking Tower

  • Fully automated independent car parking system.
  • Easy in operation.
  • Human & car safety is ensured.
  • Low maintenance.
  • Floor space utilization of 3 to 5 times.
  • Most suitable for Staff or dedicated user parking.
Rotary Parking Tower
